Description and areas of application:

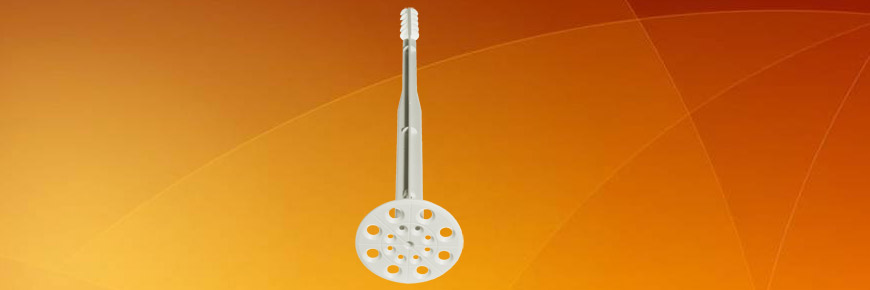

For fastening on insulations, the insulation fixing DHI has been adapted in such a way that on the plate either our Euro-clip for pipe assembly or even lights etc. can be screwed on. This insulation fixing comes in different lengths, depending on the thickness of the insulation. It can be used to bridge insulations up to 20 cm. In the process, the anchor section must have a firm hold in a solid sub-surface.

Benefits

Easy to insert by simply pressing with the thumb, no thermal bridge.

Product Details :

• Weight per item*: 26 g, 44 g, 44 g, 85 g, 135 g
• Working temperature: –20 to +75 °C
• Height*: Dowel length 4 cm
• Length in cm*: 8/10/13/15/17.5/25/30
• Weight per piece*: 9.20 g / 10.10 g / 11.20 g / 12.40 g / 13.00 g / 12.00 g / 13.50 g
• Maximum load**: 550 N concrete, full frick; 500 N hollow brick; 260 N aerated concrete
• Breaking load**: 780.60 N concrete, 707.80 N hollow brick; 828.70 N full frick; 378.70 N aerated concrete
• EAN codes*: 9008439-315109, -315307, -315505, -315703, -315901, -316106, -316304

Insulation Length	Total Length	Type	Contents Carton	Article Number
3-4cm	8 cm	DHI 8	225	31510
4-6cm	10 cm	DHI 10	175	31530
6-8cm	13 cm	DHI 13	150	31550
8-10 cm	15 cm	DHI 15	125	31570
10-14 cm	17.5cm	DHI 17	75	31590
15-20 cm	25 cm	DHI 25	75	31610
21-25 cm	30 cm	DHI 30	75	31630

Assembly instructions: minimum setting depth in the stable subsurface = 45 mm Drilling diameter = 10 mm. Minimum drilling depth = overall length DHI + 10 mmRecommended screws: Steel sheeting- or chipboard screws 4 mm, screw-in depth in DHI = 10–15 mm.With the DHI insulation fixing, you don’t just mount the insulation but also the electricity supply.

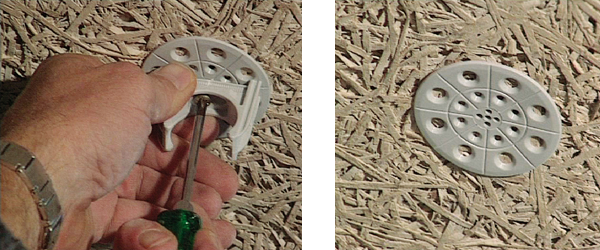

Process Images
