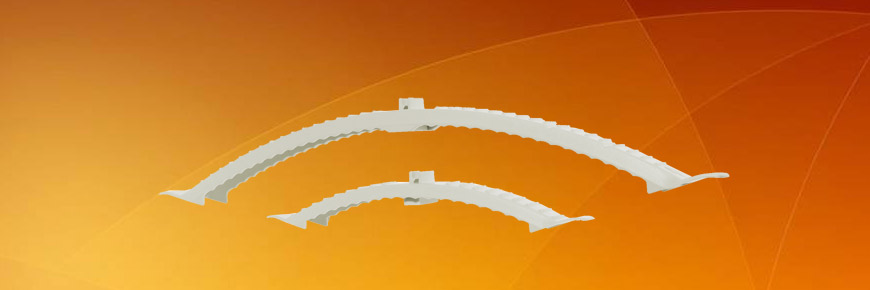

TB - Terrace anchor for snapping onto TA support anchor

TB - Terrace anchor for snapping onto TA support anchor (Section Installation System for sheathed cables and buried hoses)

Description and areas of application:

Section installation system for many cables and pipes in up to four overlapping levels. Simply snap the terrace bracket onto the support anchor. The terrace bracket can be used both on and under plaster. The terrace bracket is not suitable for screwing on. It should only be used in conjunction with the support anchor.

Benefits :

Using only one drill hole, it is possible to install many cables and hoses and to save a lot of time. In the case of the buried application, distributors in particular can achieve a multiple increase in installation capacity.

Product Details :

  • Material: halogen-free, POM,
  • Working temperature: –20 to +100 °C
  • Length (total)*: 13.3 cm, 23.6 cm
  • Width: 2 cm
  • Weight per piece*: 5.8 g, 13.6 g
  • EAN-Codes*: 9008439-330508, -330805
  • * Listed in product overview order

Clamping range mm Type Colour Contents Pack/Carton Item No.
100 TB 10 Halogen-free Light grey 50/1.000 33050
200 TB 20 Halogen-free Light grey 25/600 33080

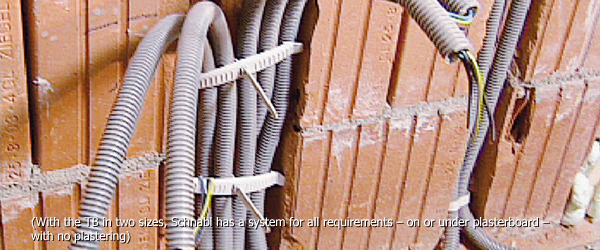

Process Images
