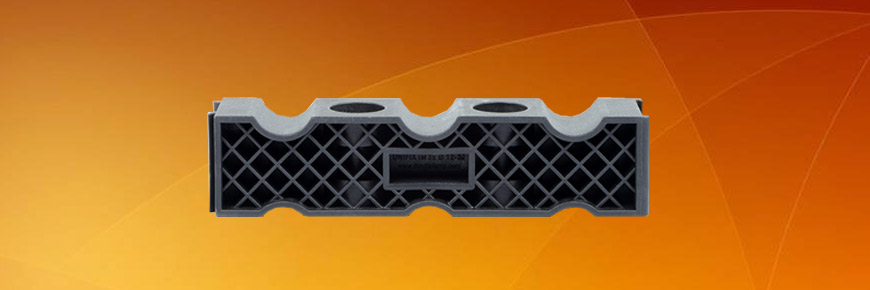

AMROCK Unifix IM blocks have been specially developed for the short circuit proof mounting of cables with a diameter of between 12 mm and 32 mm (Unifix IM 12-32) or cables with a diameter of between 32 mm and 48 mm (Unifix IM 32-48). You can mount 4 cables next to each other using two blocks. Stack 3 blocks for 8 cables, 4 blocks for 12 cables and 5 blocks for 16 cables. The blocks may also be linked horizontally using the handy dovetail joint connection.

AMROCK Unifix IM blocks are unique. The cable surfaces provide perfect pressure distribution and maximum grip and don't have any sharp edges. In this way, there is no point load on the cables and the cables are not damaged.

The unique raw material used to manufacture the cable blocks means they are resistant to corrosion, ozone, frost, heat, oil, acids, salts, aggressive substances, UV and nuclear radiation.

Sizes

We provide following sizes in Trefoil range. Kindly contact us if specific dimensions are required.

Benefits

  • Resistant to oils, fats, UV, ozone, frost, heat, salt, moisture, acids, alkalis and even nuclear radiation.
  • Uniquely linkable and stackable
  • Temperature range from -40°C to 120°C. (225°C) momentarily.
  • Coloured black.
  • Cables are always the right distance apart.
  • Non magnetic / non conductive.
  • Available pre-mounted.
  • Tailor-made fastening material is also available.
  • Non oxidizing / non corrosive.
  • No sharp angles.
  • Recyclable.
  • Very simple installation.
