Description and areas of application:

This clip comes in three clamping ranges, with each one suitable for 2 different hose dimensions. The USA 20-25 can therefore be used for a 20 and a 25 hose.

Benefits

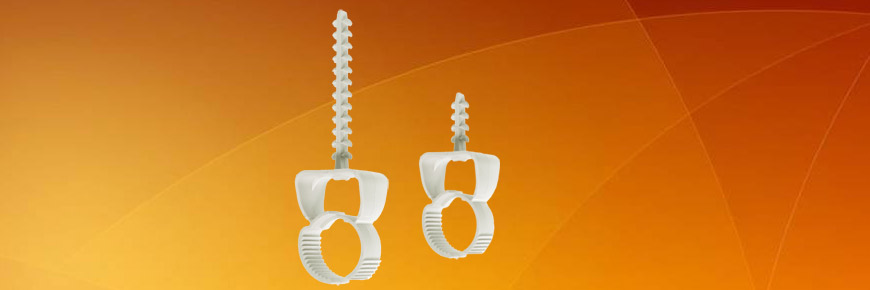

The buried clamp USA closes automatically when the hose is inserted.

Product Details :

• Material: halogen-free, PP, light grey
• Working temperature: –10 to +85 °C
• Length (total; open)*: 4.2 cm; 5 cm; 5.9 cm; 5.2 cm; 6 cm; 6.7 cm; 8.4 cm; 9.5 cm; 10 cm
• Width*: 2 cm; 2.5 cm; 3.2 cm; 2.1 cm; 2.5 cm; 3.1 cm; 2.1 cm; 2.5 cm; 3.1 cm
• Weight per piece*: 1.4 g; 2.4 g; 4.4 g; 1.6 g; 2.6 g; 4.6 g; 2 g; 3 g; 5 g
• Maximum load**: 170 N concrete, 150 N solid brick, 160 N hollow brick, 75 N aerated concrete, 130 N plasterboard
• Breaking load**: 241.40 N concrete, 210.20 N solid brick, 234.70 N hollow brick, 106 N aerated concrete, 191 N
• EAN Code*: 9008439-123308; -123407; -123506; -124305; -124404; -124503; -125302; -125401; -125500
• * Listed in product overview order
• ** For USA 20-25/25

Clamping range pipe dim.	Anchor Lenght mm	Type	Contents Pack/Carton	Item No.
16-20	11	USA 16-20/11 Halogen free	100/3.200	12330
20-25	11	USA 20-25/11 Halogen free	100/2.400	12340
25-32	11	USA 25-32/11 Halogen free	50/1.200	12350
16-20	25	USA 16-20/25 Halogen free	100/3.200	12430
20-25	25	USA 20-25/25 Halogen free	100/2.200	12440
25-32	25	USA 25-32/25 Halogen free	100/1.200	12450
16-20	55	USA 16-20/55 Halogen free	100/2.400	12530
20-25	55	USA 20-25/55 Halogen free	100/1.600	12540
25-32	55	USA 25-32/55 Halogen free	50/1.000	12550

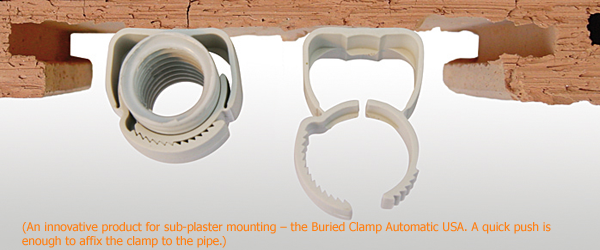

Process Images
