Description and areas of application:

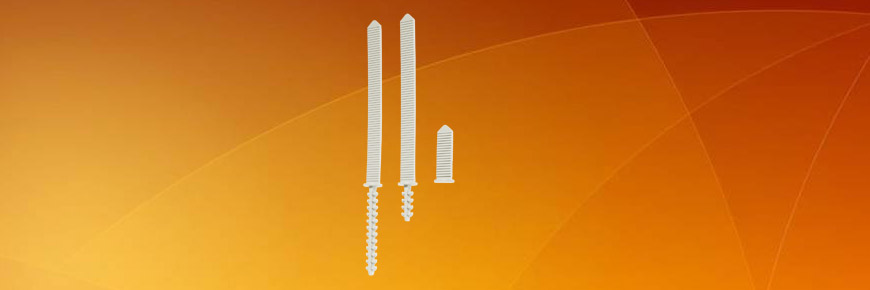

Support anchor for snapping on of all terrace brackets.

Benefits

If slots are not accurately provided, the support anchor can be twisted – this creates the option of pressing the terrace bracket twisted into the slot without any trimming.

Product Details :

• Material: halogen-free, PA 6, light grey
• Working temperature: –20 to +85 °C
• Width*: each 1.3 cm (Ø plate), each 0.9 cm (anchor)
• Weight per piece*: 1.0 g, 2.6 g, 1.4 g, 3 g, 2 g, 3.6 g
• Maximum load*: 260 N concrete, full brick; 250 N hollow brick; 100 N aerated concrete
• Breaking load*: 369 N concrete, 374 N hollow brick, 365.2 N full brick, 148.1 N aereated concrete
• EAN-Code*: 9008439-331109, -331208, -331307, -331703, -331505, -331901
• * Listed in product overview order

Shaft Lenght mm	Anchor Lenght mm	Type	Contents Pack/Carton	Item No.
30	25	TA 30 Halogen-free	100/8.000	33110
100	--	TA 100 Halogen-free	100/3.600	33120
30	25	TA 30/25 Halogen-free	100/5.400	33130
100	25	TA 100/25 Halogen-free	100/2.400	33170
30	55	TA 30/55 Halogen-free	100/3.000	33150
100	55	TA 100/55 Halogen-free	100/1.600	33190

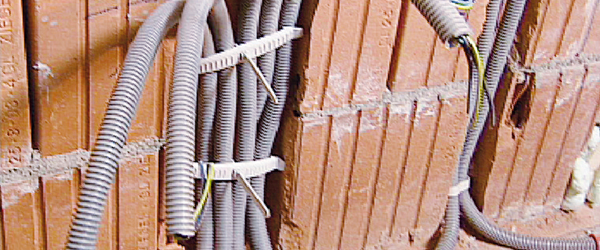

Process Images
