Description and areas of application:

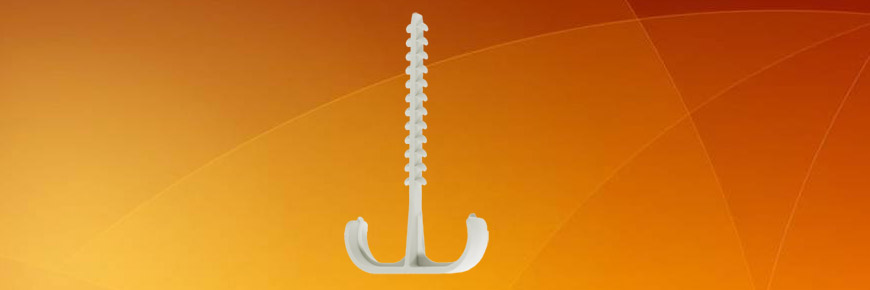

For double installation we have the USD, and here the hose must first be covered and then inserted with the clip into the drill hole.

Areas of application:

What our clips need, are accurate holes. For this reason we have developed a special drill for you, namely the lance drill for hollow bricks. Drilling is done with a simple twisting movement – no percussion, and all the webs in the hollow brick are maintained. Tiles and glass can also be drilled without any problems and without anything breaking.

Benefits

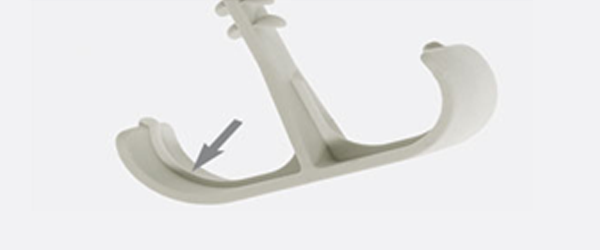

All buried clamps have a flange inside which holds the hose. The hose can thus be tightened and pressed into corners.

Product Details :

• halogen-free, PP, light grey,
• Working temperature: –10 to +85 °C
• Weight per piece*: 1.1 g; 1.8 g; 3.1 g; 1.7 g; 2.3 g; 3.6 g
• EAN codes* 9008439-122202, -22301, -22400, -121700, -121809, -121908
• * Listed in product overview order

Clamping range pipe dim.	Anchor Lenght mm	Type	Contents Pack/Carton	Item No.
16-20	25	USD 16-20/25 Halogen free	200/4.800	12220
20-25	25	USD 20-25/25 Halogen free	100/3.200	12230
25-32	25	USD 25-32/25 Halogen free	100/1.600	12240
16-20	55	USD 16-20/55 Halogen free	100/3.200	12170
20-25	55	USD 20-25/55 Halogen free	100/2.400	12180
25-32	55	USD 20-32/55 Halogen free	100/1.600	12190

Process Images
