Description and areas of application:

For the aligned installation of sheathed cables, we have the cable bracket, the KB 10 for up to 10 and the KB 20 for up to 20 sheathed cables (3x1.5 mm²).

Benefits :

As with most Amrock Schnabl products, here too the Euro-clip can be aligned to fasten a pipe.

Product Details :

• Material: halogen-free, PP,
• Working temperature: –10 to +85 °C
• Weight per piece*: 6.7 g; 11.3 g
• Max. load**: 240 N concrete, 230 N solid brick
• Breaking load**: 343.70 N concrete; 331 N solid brick
• EAN-Codes*: 9008439-304202, -304400
• * Listed in product overview order
• ** for KB 10

Clamping range mm	Type	Colour	Contents Pack/Carton	Item No.
100	KB 10 Halogen-free	Light grey	50/1.000	30420
200	KB 20 Halogen-free	Light grey	25/600	30440

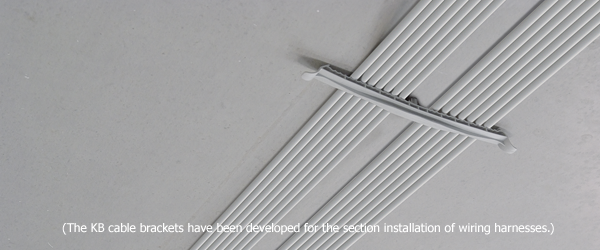

Process Images
