Description and areas of application:

The DSN has been developed for fastening cable ducts. The special form of the head ensures that a very good clamping effect is achieved.

Areas of application :

The dowel fastening nail DSN30 and DSN40 are, due to their slim width of only 4,5 mm, suitable for time and effort saving mounting of fire detectors, lamps and many other objects.

Product Details :

• halogen-free, PA6, temperature range: –20 to +85 °C
• Weight per piece*: 0.7 g; 0.8 g; 1 g
• Max. load**: 200 N concrete, 200 N solid brick, 150 N hollow brick, 50 N aerated concrete; 140 N plasterboard 25 mm
• Breaking load**: 340 N concrete, 330 N solid brick; 310 N hollow brick, 75 N aerated concrete; 85 N plasterboard 25 mm
• EAN-Codes*: 9008439-303205, -303403, -303601
• * Listed in product overview order
• ** for DSN 30

Nail Length mm	Type	Colour	Contents Pack/Carton	Item No.
31	DSN 30 Halogen-free	Light grey	200/10.800	30320
40	DSN 40 Halogen-free	Light grey	200/7.200	30340
49	DSN 50 Halogen-free	Light grey	200/6.000	30360

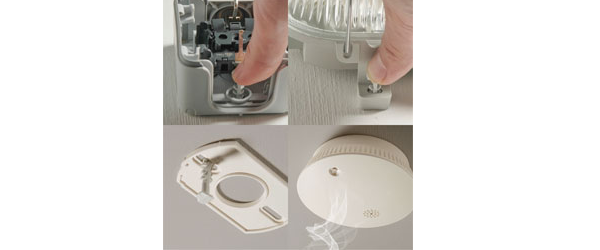

Process Images
