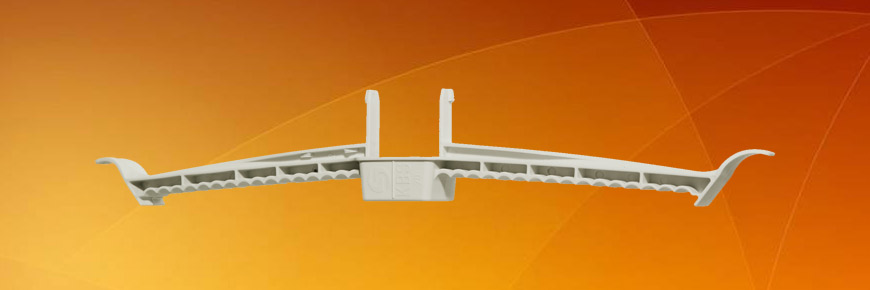

KBS- Cable Bracket for Shooting

KBS- Cable Bracket for Shooting (Fastening Elements for Single or bundles of Cables)

Description and areas of application:

Cable Routing of up to 20 cables (3 x 1,5 mm²) after ceiling installation with all common direct shooting fastening systems.

Benefits :

The easy insertion and perfect alignment of up to 20 cables directly on the ceiling after mounting with gas tools from Hilti, Spit or Wuerth. Due to the clamping force of the KBS, despite variable high temperatures a durable installation is always maintained. It is possibility to add a 20 mm EC Euro Clip for pipe installation to the centre of the KBS without any drilling.

Product Details :

  • Material: halogen-free, PP,
  • Temperature range: –10 to +85 °C
  • Weight per piece: 12.2 g
  • EAN-Codes: 9008439-304608

Lenght mm Type Halogen free Contents pcs./box Article No.
200 KBS 20 100/500 30460

Process Images
