Description and areas of application:

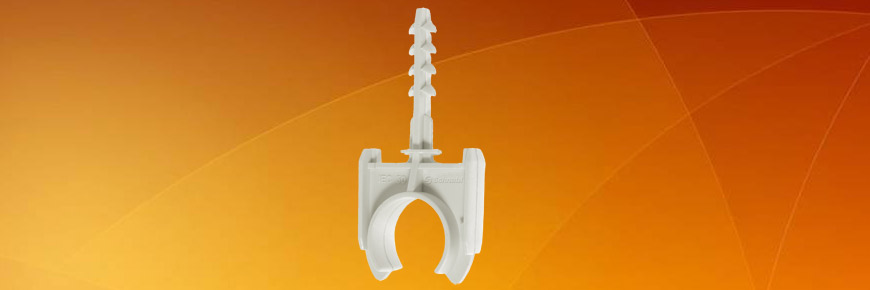

A quick alternative to our EC-clip with ESD, is the distance gripper clamp AKS, in which clip and anchor section are in one element.

Areas of application :

The AKS is used primarily in suspended ceilings and less for visible assemblies, as subsequent adjustment is not possible here.

Product Details :

• Material halogen-free: PA 6, light grey, UV stabilised, silicon-free
• Temperature range: –20 °C to +85 °C
• Weight per piece*: 2.3 g, 3.2 g, 4.2 g, 5.6 g, 6.9 g, 11.3 g
• Max Load.**: 350 N (35 kg) concrete, 280 N (28 kg) solid brick, 270 N (27 kg) hollow brick, 130 N (13 kg) aereated brick
• Breaking Load.**: 504.4 N (50.4 kg) concrete, 404.3 N (40.4 kg) solid brick, 387.2 N (38.7 kg) hollow brick, 187.1 N (18.7 kg) aereated brick
• EAN-Codes*: 9008439-307401, -308002, -308408, -308804, -309009, -309207
• * Listed in product overview order
• ** for AKS 25
• Other colours on request

Insulated Pipe-Ø	Type	Colour	Contents Pack/Carton	Item No.
16	AKS 16 Halogen-free	Light grey	200/4.800	30740
16	AKS 16 Halogen-free	grey	200/4.800	30741
16	AKS 16 Halogen-free	black	200/4.800	30744
19	AKS 19 Halogen-free	Light grey	200/3.200	30780
20	AKS 20 Halogen-free	Light grey	200/3.200	30800
20	AKS 20 Halogen-free	grey	200/3.200	30801
20	AKS 20 Halogen-free	black	200/3.200	30804
25	AKS 25 Halogen-free	Light grey	100/2.200	30840
25	AKS 25 Halogen-free	grey	100/2.200	30841
25	AKS 25 Halogen-free	black	100/2.200	30844
32	AKS 32 Halogen-free	Light grey	100/2.000	30880
32	AKS 32 Halogen-free	grey	100/2.000	30881
32	AKS 32 Halogen-free	black	100/2.000	30884
40	AKS 40 Halogen-free	Light grey	50/1.400	30900
40	AKS 40 Halogen-free	grey	50/1.400	30901
40	AKS 16 Halogen-free	black	50/1.400	30904
50	AKS 50 Halogen-free	Light grey	50/750	30920
50	AKS 50 Halogen-free	grey	50/750	30921
50	AKS 50 Halogen-free	black	50/750	30924
	AKS 50 Halogen-free	black	200/12.000	30940

(If you need a distance from the wall then the AKS Distance Gripper Clamp is your choice)

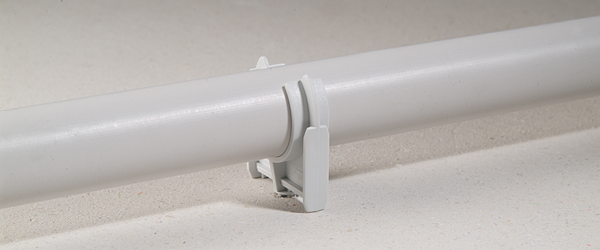

Process Images
