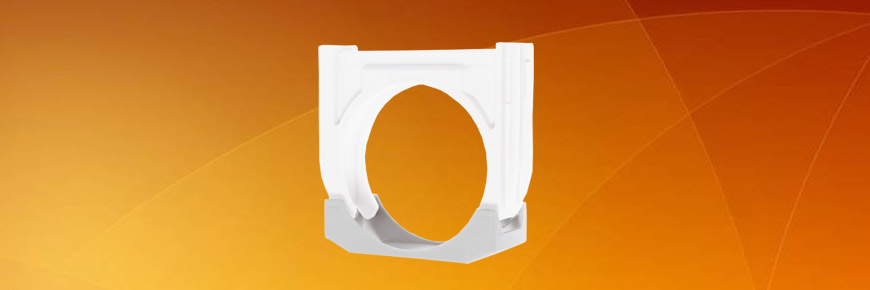

UVB - UNIVERSAL CLAMPING BRACKET

UVB - UNIVERSAL CLAMPING BRACKET
UVB - UNIVERSAL CLAMPING BRACKET

Description and areas of application:

If a closed clip is required, there is the UVB to prevent pipes warping at the start or the end as a result of temperature or breaking loads and slipping out of the clip.

Areas of application :

For attaching onto the EC. No more chance of the pipes slipping out.

Product Details :

  • Material: halogen-free, PA 6, light grey, UV stabilised,
  • Temperature range: –20 °C to +85 °C, silicon-free
  • Weight per piece*: 0.6 g; 0.7 g; 1.1 g; 1.6 g; 2.4 g; 2.3 g
  • * Listed in product overview order

Insulated Pipe-Ø Type Colour Contents Pack/Carton Item No.
16 UVB 16 Halogen-free light grey 100/7.200 34020
16 UVB 16 Halogen-free grey 100/7.200 34021
16 UVB 16 Halogen-free black 100/7.200 34024
20 UVB 20 Halogen-free light grey 100/6.000 34080
20 UVB 20 Halogen-free grey 100/6.000 34081
20 UVB 20 Halogen-free black 100/6.000 34084
25 UVB 25 Halogen-free light grey 100/3.600 34120
25 UVB 25 Halogen-free grey 100/3.600 34121
25 UVB 25 Halogen-free black 100/3.600 34124
32 UVB 32 Halogen-free light grey 50/2.100 34160
32 UVB 32 Halogen-free grey 50/2.100 34161
32 UVB 32 Halogen-free black 50/2.100 34164
40 UVB 40 Halogen-free light grey 50/1.500 34200
40 UVB 40 Halogen-free grey 50/1.500 34201
40 UVB 40 Halogen-free black 50/1.500 34204
50 UVB 50 Halogen-free light grey 50/1.000 34220
50 UVB 50 Halogen-free grey 50/1.000 34221
50 UVB 50 Halogen-free black 50/1.000 34224
50 UVB 2* Halogen-free light grey 50/1.000 34240

With the UVB, even tubes with heavy cable bundles are held securely in the EC.
