Description and areas of application:

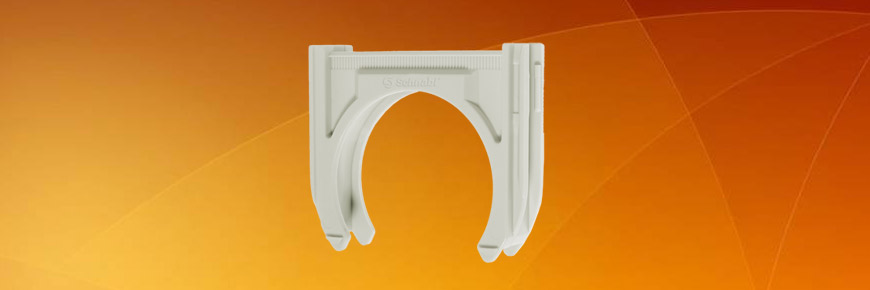

The ESD is used to take our EC-clip or the cable tie. The Euro-clip EC is snapped onto the Euro fastening anchor ESD – inserted into the drill hole, the pipe is hammered in and the installation is finished in no time.

Areas of application :

The ESD comes in different lengths: ESD 11 for plasterboard, ESD 30 for concrete or full bricks, ESD 45 for plastered walls/ceilings, ESD 80 for insulated walls/ceilings, with in the ESD 45 and the ESD 80 the smooth shaft is used to bridge the plaster or insulation and the anchor shaft must be inserted in the solid brickwork.

Benefits :

If necessary, the ESD can also easily be dismantled by simply twisting it.

Product Details :

• Material halogen-free: PA 6, light grey, UV stabilised, silicon-free
• Temperature range: –20 °C to +85 °C
• Weight per piece*: 0.7 g; 1.1 g; 1.5 g; 2.4 g
• Max. load**: 250 N concrete, 225 N solid brick, 230 N hollow brick, 100 N aerated concrete, 150 N plasterboard 25 mm
• Breaking load**: 359.00 N concrete, 325.50 N solid brick, 335.70 N hollow brick, 151.30 N aerated concrete, 225.60 N plasterboard 25 mm
• EAN-Codes halogen-free*: 9008439-312801, -313006, -313204, -313402
• * Listed in product overview order
• ** for ESD 30

Length mm	Type	Colour	Contents Pack/Carton	Item No.
11	ESD 11 Halogen-free	light grey	200/10.800	31280
11	ESD 11 Halogen-free	grey	200/10.800	31281
11	ESD 11 Halogen-free	black	200/10.800	31284
27	ESD 27 Halogen-free	light grey	100/4.800	31300
27	ESD 27 Halogen-free	grey	100/4.800	31301
27	ESD 27 Halogen-free	black	100/4.800	31304
42	ESD 45 Halogen-free	light grey	100/3.000	31320
42	ESD 45 Halogen-free	grey	100/3.000	31321
42	ESD 45 Halogen-free	black	100/3.000	31324
80	ESD 80 Halogen-free	light grey	50/1.800	31340
80	ESD 80 Halogen-free	grey	50/1.800	31341
80	ESD 80 Halogen-free	black	50/1.800	31344

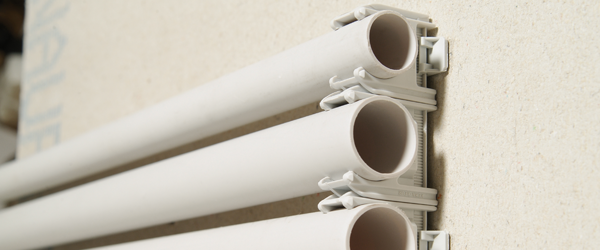

(The perfect combination: ESD Euro-fastening anchor and EC Euro-clip for efficient pipe fixing)

Process Images
