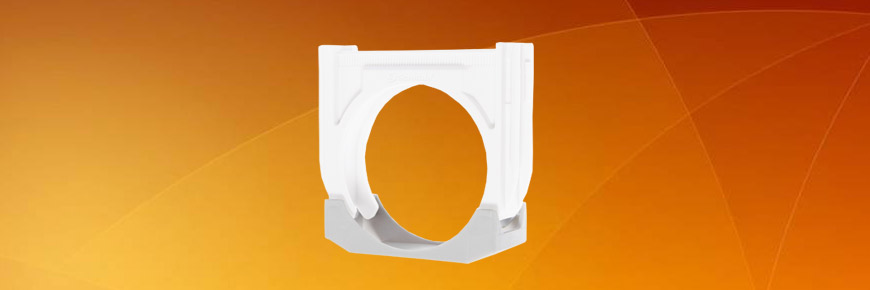

AMROCK EC - Euro Clip
EC - EURO CLIP

Description and areas of application:

The Euro-clip EC is snapped onto the Euro fastening anchor ESD, inserted into the drill hole, the pipe is hammered in and the installation is finished in no time.

Areas of application :

With the Euro-clip EC you have a universal clip that can be fitted onto nearly all types of sub-surfaces. The EC can not only be fastened, but also glued – with our Euro adhesive pad EKP. This has the same uptake geometry as the ESD. With the Euro twist-on connector EDV, the EC can also very easily be inserted into the elongated hole on cable lines.

Benefits :

The EC can be aligned by sliding across the entire width of the clip (with ESD, EKP or EDV) and removed again by simply breaking it off without causing any damage.

Product Details :

  • Material: polystyrene PS, ABS, halogen-free, UV-stabilised,
  • Temperature range: –20 to +85 °C
  • Weight per piece*: 3.2 g; 3.6 g; 4.8 g; 6.4 g; 7.8 g; 10.4 g
  • EAN-Codes halogen-free*: 9008439-310203, -310807, -311200, -311606, -312009, -312207
  • * Listed in product overview order

Insulated Pipe-Ø Type Colour Contents Pack/Carton Item No.
16 EC 16 Halogen-free light grey 100/3.200 31020
16 EC 16 Halogen-free grey 100/3.200 31021
16 EC 16 Halogen-free black 100/3.200 31024
19 EC 19 Halogen-free light grey 100/2.400 31060
20 EC 20 Halogen-free light grey 100/2.400 31080
20 EC 20 Halogen-free grey 100/2.400 31081
20 EC 20 Halogen-free black 100/2.400 31084
25 EC 25 Halogen-free light grey 100/2.000 31120
25 EC 25 Halogen-free grey 100/2.000 31121
25 EC 25 Halogen-free black 100/2.000 31124
32 EC 32 Halogen-free light grey 50/1.600 31160
32 EC 32 Halogen-free grey 50/1.600 31161
32 EC 32 Halogen-free black 50/1.600 31164
40 EC 40 Halogen-free light grey 50/1.100 31200
40 EC 40 Halogen-free grey 50/1.100 31201
40 EC 40 Halogen-free black 50/1.100 31204
50 EC 50 Halogen-free light grey 50/700 31220
50 EC 50 Halogen-free grey 50/700 31221
50 EC 50 Halogen-free black 50/700 31224

Together with the UVB Universal clamping bracket, the EC Euro-Clip meets the requirements of a closed clamp so as to prevent slipping when mounting pipes in high ambient temperatures (deformation), for example.

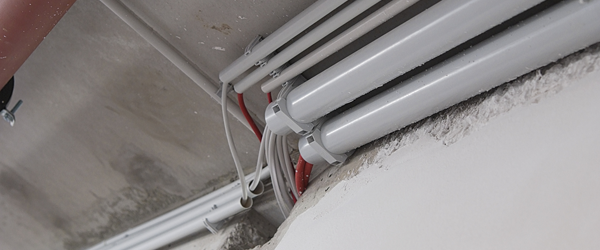

Process Images
