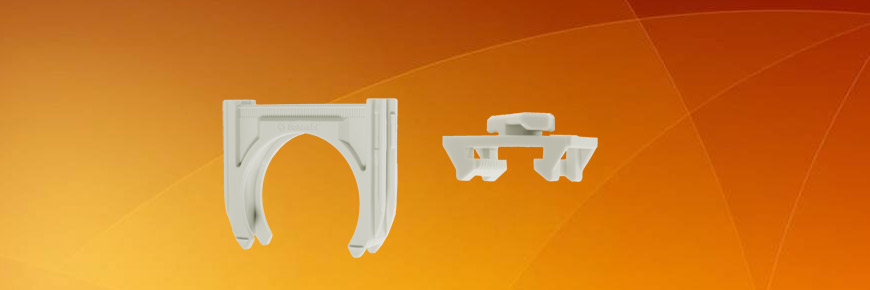

Description and areas of application:

The EDV is used to fasten pipes in cable lines or thin sheet metal plates with elongated holes.

Areas of application :

The Euro twist-on connector is fastened into an elongated hole with a quarter turn. After this an EC can be clipped in to fit pipes or hoses.

Benefits :

Compared to fastening with cable ties, using the EDV saves considerable time. With the flat rear of the EDV, the cables lying in the cable tie are not damaged.

Product Details :

• Material halogen-free: PA 6, light grey, UV stabilised, silicon- free
• Temperature range: –20 °C to +85 °C
• Weight per item: 0.8 g

Type	Colour	Contents Pack/Carton	Item No.
EDV Halogen-free	light grey	200/3.000	31430

(Ideal for fixing pipes to all conventional cable conduits with slotted holes.)

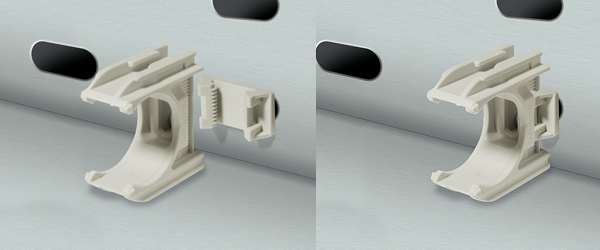

Process Images
