Description and areas of application:

With the ECV you can easily connect two Euro Clips to add additional pipes in narrow spaces.

Areas of application :

For the connection of two pipes with two Euro Clips and an ECV.

Benefits :

Add additional levels of pipes underneath each other and therefore boost your efficiency. The ECV allows for the installation of parallel pipes, or at a 90 degree angle.

• Compatible with all Schnabl Euro Clips (EC 16, EC 20, EC 25, EC 32, EC 40, EC 50)
• Fast and easy installation
• Reliable fastening

Product Details :

• Material halogen free: PA 6, light grey, UV stabilised,
• Temperature range: –20 bis +85 °C, silicon-free
• Weight per item: 1.12 g

Type	Content Unit/Box	Article Number
ECV Halogen free	200/3.000	31560

(With the ECV you can easily connect two Euro Clips to add additional pipes in narrow spaces.)

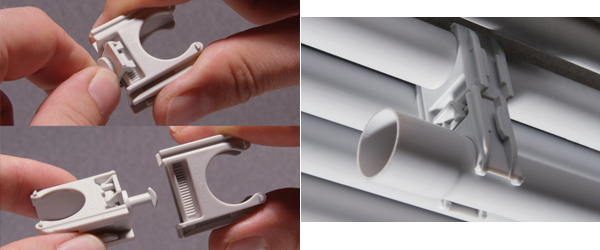

Process Images
