Description and areas of application:

Another highlight in the Schnabl product range is the new ESP Euro shooting plate for pipe and cable laying using shooting tools.

Areas of application :

Together with the proven EC Euro clip system, ESP is another component in the field of electrical installation that optimises working efficiency.

Benefits :

The shooting plate’s design means it is hidden beneath the pipe, making it virtually invisible after fitting. If several pipes are to be mounted, the shooting plate can clipped into the EC Euro clips, which in turn can be fitted into the pre-mounted EC Euro clips. The ESP Euro shooting plate is then in the right position and just has to be connected.

Product Details :

  • Material: PA 6,
  • Working temperature: –20 to +85 °C,
  • halogen-free, UV-stabilised
  • Weight per piece: 2.8 g

Type Colour Contents Pack/Carton Item No.
ESP Light grey 100/2.000 11440
ESP Halogen-free Light grey 100/2.000 31440

(The two rings are matched to the shooting tools from Hilti (GX 120-ME), Spit (Pulsa 700 E) and Würth. The ESP sticks to the mouth of the shooting pistols from these manufacturers leaving your hands free for mounting.)

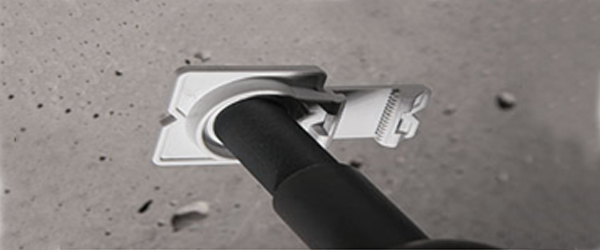

Process Images
