Description and areas of application:

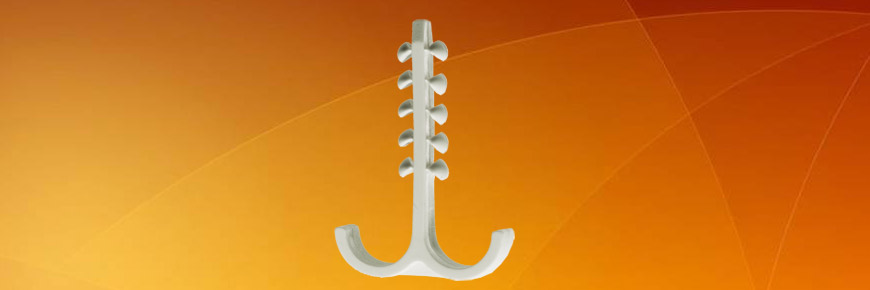

A quick alternative to the EC-clip with ESD is the double fastening clamp DSS, in which clip and anchor section are in one in element.

Areas of application :

e.g. for suspended ceilings and on the concrete layer, where a distance to the wall or ceiling is not required.

Product Details :

• Material: halogen-free, PP, light grey, UV stabilised, silicon-free
• Temperature range: –10 °C to +85 °C
• Weight per item*: 0.7 g; 2 g; 2.5 g
• * Listed in product overview order

Clamping range mm	Type	Content Unit/Box	Article Number
4-12	DSS 10	200/7.200	30220
20-25	DSS 20-25	200/4.000	30240
25-32	DSS 25-32	100/2.400	30250

(One borehole is also enough for two pipes with the double fastening clamp from Schnabl.)

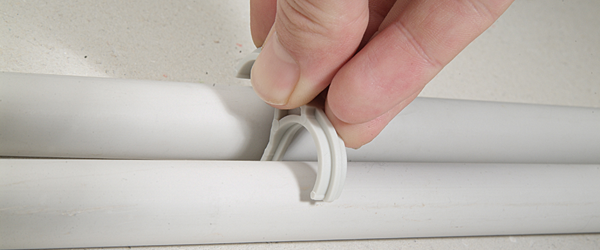

Process Images
